Sfp+ Bidi 80km Ethernet Optical Transceiver , Data Center Optical Transceiver

  • 1
  • 2

Brand Name : Sourcelight or OEM

Model Number : 10g BIDI 80km

Certification : CE/FCC/RoHS/TUV/UL

Place of Origin : Shenzhen,China

MOQ : 1PCS

Price : Get Latest Price

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 200PCS Per Week

Delivery Time : Shipped in 1 days after PO confirmed

Packaging Details : 10PCS or 20PCS Plastic trays; 1pc Independent Box.

Product name : 10g BIDI 80km

Wavelength : TX1550

Distance : 80km

DDM DOM : YES

RX Sensitivity : -24dBm

TX Power : +1~+6dBm

Contact Now

Sfp+ Bidi 80km Ethernet Optical Transceiver , Data Center Optical Transceiver

Overview

10G SFP+ BIDI 80KM transceiver is designed to be compliant with SFF-8472 and SFP+ MSA.

The module data link up to 80km in 9/125um single mode fiber.

The optical output can be disabled by a LVTTL logic high-level input of Tx Disable.

Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner.

Features

  • SFP MSA package with single LC connector
  • Typical bidi 1490/1550nm and 1550nm/1490nm for commission
  • APD receiver for high sensitivity
  • Very low EMI and excellent ESD protection
  • Support 9.95Gb/s to 11.1Gb/s serial optical interface
  • Up to 80km distance
  • Below <1.5W power consumption

Parameter

Package (Form Factor) SFP+ BIDI 80KM
Data Rate (typical) 10.3 Gbps
Centre Wavelength Tx1490nm/Rx1550nm
Distance 80km
Diagnostics Digital Monitor
Transmitter DFB Laser
Receiver APD photo detector
TX Output Power +1~+6(dBm)
RX Sensitivity -24(dBm)
Voltage Supply 3.3v(typical)
Connector Simplex LC UPC

Application
  • 10GBASE-BX 10.3125Gb/s Ethernet
  • 10GBASE-BX 9.953Gb/s Ethernet
  • SONET OC-192 &SDH STM I-64.1

Sfp+ Bidi 80km Ethernet Optical Transceiver , Data Center Optical Transceiver

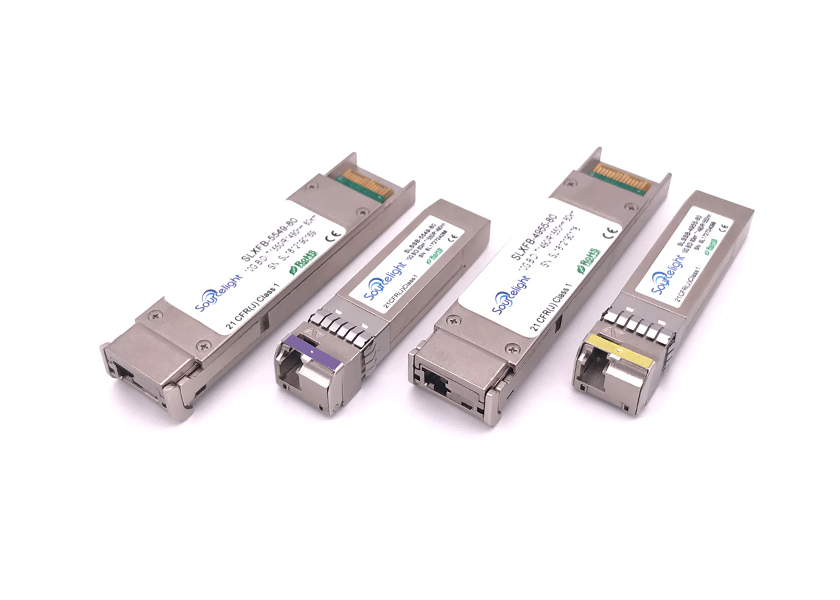

Sourcelight BIDI SFP+

BIDI (WDM) SFP+
P/N Data Rate Distance Wavelength FP PD Media
BIDI SFP+ 60KM 10G/ps 60KM T1330/R1270 DFB APD SM
BIDI SFP+ 60KM 10G/ps 60KM T1270/R1330 DFB APD SM
BIDI SFP+ 40KM 10G/ps 40KM T1330/R1270 DFB PIN SM
BIDI SFP+ 40KM 10G/ps 40KM T1270/R1330 DFB PIN SM
